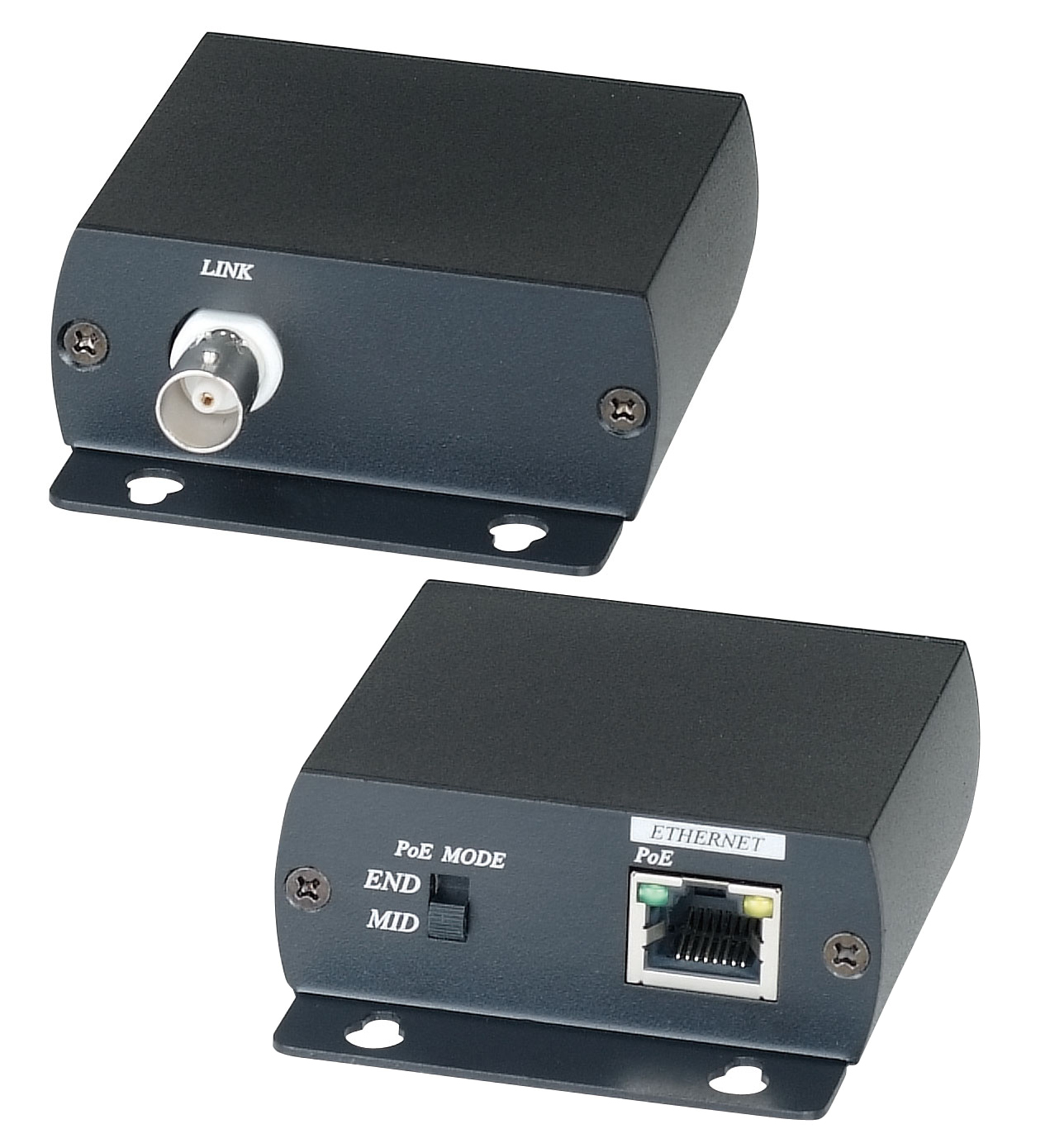

IP01P Economic POE Extender over Coax

IP01P Extender is designed to send and extend IP/POE camera or any TCP/IP 10/100BaseT devices over existing coax cable.  The distance could up to 300 meters by RG6U 75Ω Coaxial Cable. They are completely transparent to protocols, codes, and applications ensuring compatibility with any IP, POE camera and its management software.  It is perfect solution to replace the analog camera to IP/POE camera using existing coax cable.



IP01P Economic POE Extender over Coax

  • To extend IP/POE camera over coax cable.
  • Connects IP/POE camera to 10/100BaseT POE Injector/Switch over one coax cable.
  • Support POE: IEEE 802.3af and IEEE802.3at
  • Support 10/100 Mbps transmission rate.
  • Power source from POE Injector/ POE Switch (order separately)
  • IP01P Power Source Option Model: POE Injector/Switch: IP05I/IP05H/IP06H/IP06I

Installation:

Panel View:





Transmission Distance Chart:

Coax Cable

Distance

Link Speed

Power  Output

PoE IEEE802.3af.

PoE IEEE802.3at

RG59

100M

10Mbps

10W

20W

RG59

200M

10Mbps

7W

18W

RG6U

100M

100Mbps

10W

20W

RG6U

200M

10Mbps

7W

18W

RG6U

300M

10Mbps

5W

15W

Specifications:

Item NO.

IP01P

Link Connector

BNC x 1

Ethernet Connector

RJ45 x 1

Linking Cable

75Ω coax cable

Ethernet Speed

10/100 Mbps

Transmission Distance

300M(Max)

PoE Standard

IEEE 802.3af and IEEE802.3at

PoE Mode Setting

MID-SPAN、END- SPAN

LED Indication

Power (Green) x 1

Power Consumption

1.25W (Max.)

Temperature

Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%

Dimension     mm

67 x 87 x 27

Weight           g

150
