3G/HD-SDI to HDMI/Component Video Converter

SDI03 is used for up or down scaling of 3G HD-SDI signals to computer graphics video, SD, or HD video signals. It accepts multi-standard SDI, HD-SDI, and 3G HD-SDI input, and gives you the option of selecting the output resolution and aspect ratio, provided via a HDMI or Component Video output selection. Applications including HD CCTV, home theater up-scaling, projection systems in conference rooms, boardrooms, hotels and churches.



SDI03 3G/HD-SDI to HDMI/Component Video Converter

  • Extend HD SDI signal over 75Ω coax cable up to 200M.
  • Support SDI (SMTP 259M), HD-SDI (SMTP 292M), 3G-SDI (SMTP 424M).
  • Support video signal NTSC, PAL, 720p, 1080i, 1080p.
  • Built in RS485 control with half duplex speed up to 57,600 bps, but which effects only when using 2 piece or more than 2 pieces SR02 long range installation.
  • Ability to do multiple repeaters application up to 5 pieces with distance 1KM (Max.)
  • Ability to send power to next SR02 repeater unit over coax cable from the remote repeater (nearest the DVR) when using 2 piece or more than 2 pieces SR02 long range installation.

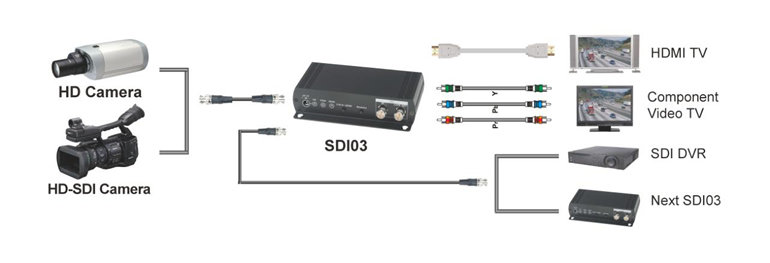

  • Installation:

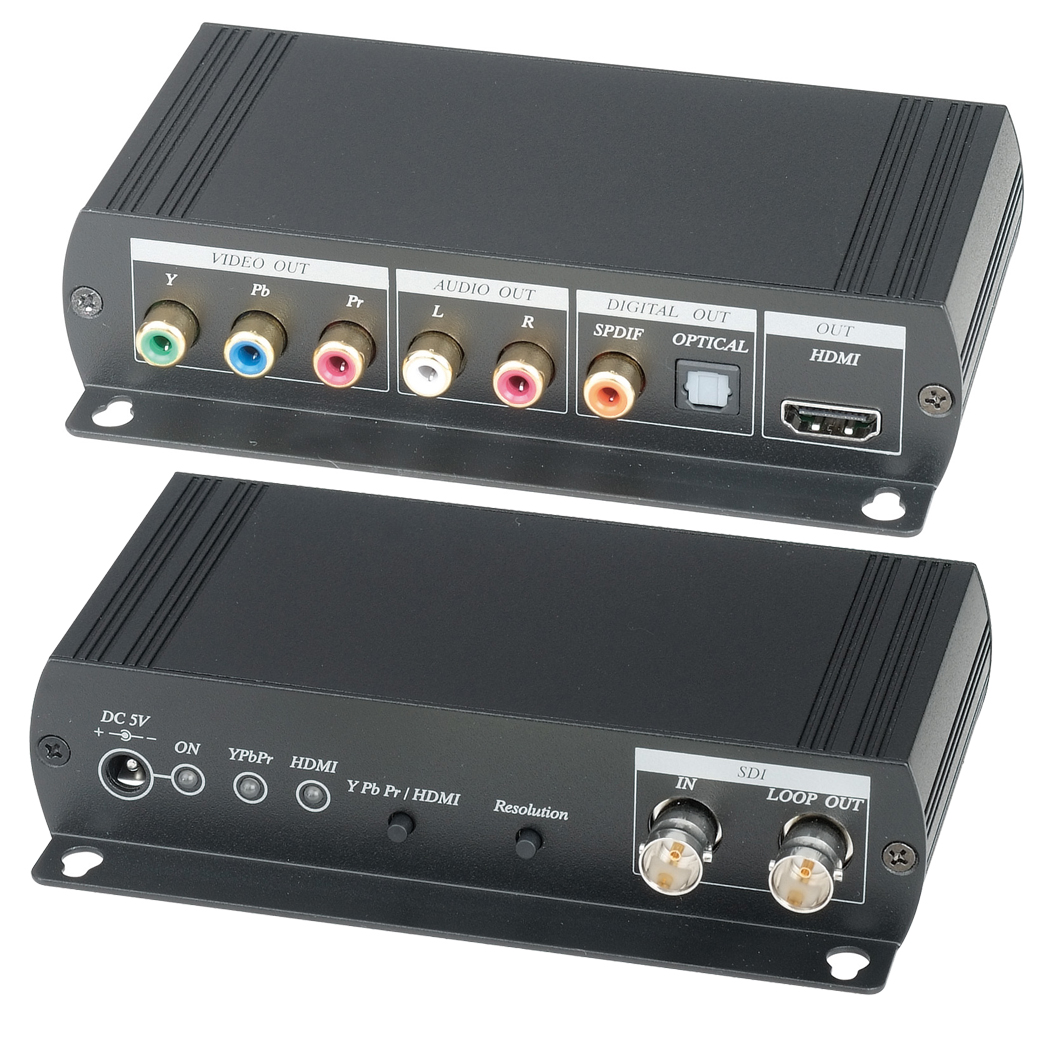

    Panel View:



    Working Distance: Max. distance via high quality 75Ω Coaxial Cable ( Belden 1505A Testing)
    SD resolution 270Mbps (480i,576i)

    300M

    HD resolution 1.45Gbps (720p, 1080i, 1080p@24/25/30Hz)
    200M
    Full HD resolution 2.97Gbps (720p, 1080i, 1080p@24/25/30Hz)
    100M
