Foresight™ IP Extender with Power over Coax (PoE over Coax)

IP02P Extender is designed to send and extend IP or POE camera or any TCP/IP 10/100BaseT devices over existing coax cable.  The distance could up to 180 meters by RG6U 75Ω Coaxial Cable. They are completely transparent to protocols, codes, and applications ensuring compatibility with any IP, POE camera and its management software.  It is perfect solution for sending IP Video links and Power to remote camera installation that are beyond the 100 meters distance limit of Ethernet.

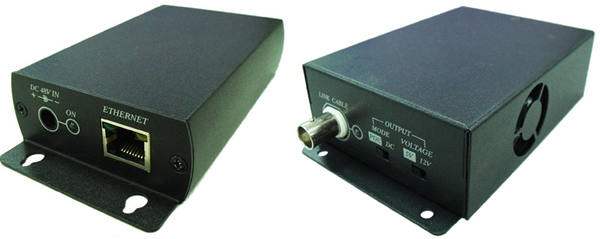

IP02P  IP Extender with Power over Coax

  • Send any extend IP / POE camera or any TCP/IP devices over existing coaxial cable
  • Maximum range up to 180 meters over RG6 75Ω Coaxial Cable, 125 meters over RG59 75Ω Coaxial Cable.
  • Ability to send power over coax to IP/POE camera (DC5V, DC12).
  • Support 10/100BASE-T transmission rate.
  • Built in LED status indicationPackage include external DC48V power adapter.

Installation View:
