TTA111VHA-960H UTP Auto Gain Long Range UTP Transmission



TTP111VE + TTA111VHA-960H for UTP Auto Gain Long Range UTP Transmission



  • To send 960H camera video signal over twisted pair cable.
  • Eliminate the coaxial coax.
  • Package include: TTP111VE Passive Video Transmitter + TTA111VHA Digital Auto Gain
  • Active Receiver with power adapter.
  • TTP111VE is passive type, no power required.
  • TTP111VE iscompact size for easy installation at camera side.
  • TTA111VHA-960H design for 960H video auto gain receiver built in two mode auto gain control.
  • TTA111VHA-960H auto gain receiver built in transient protection and grounding lifting.

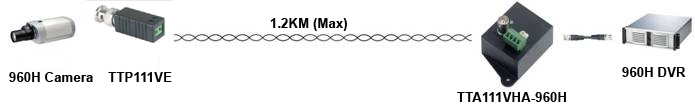

Installation:

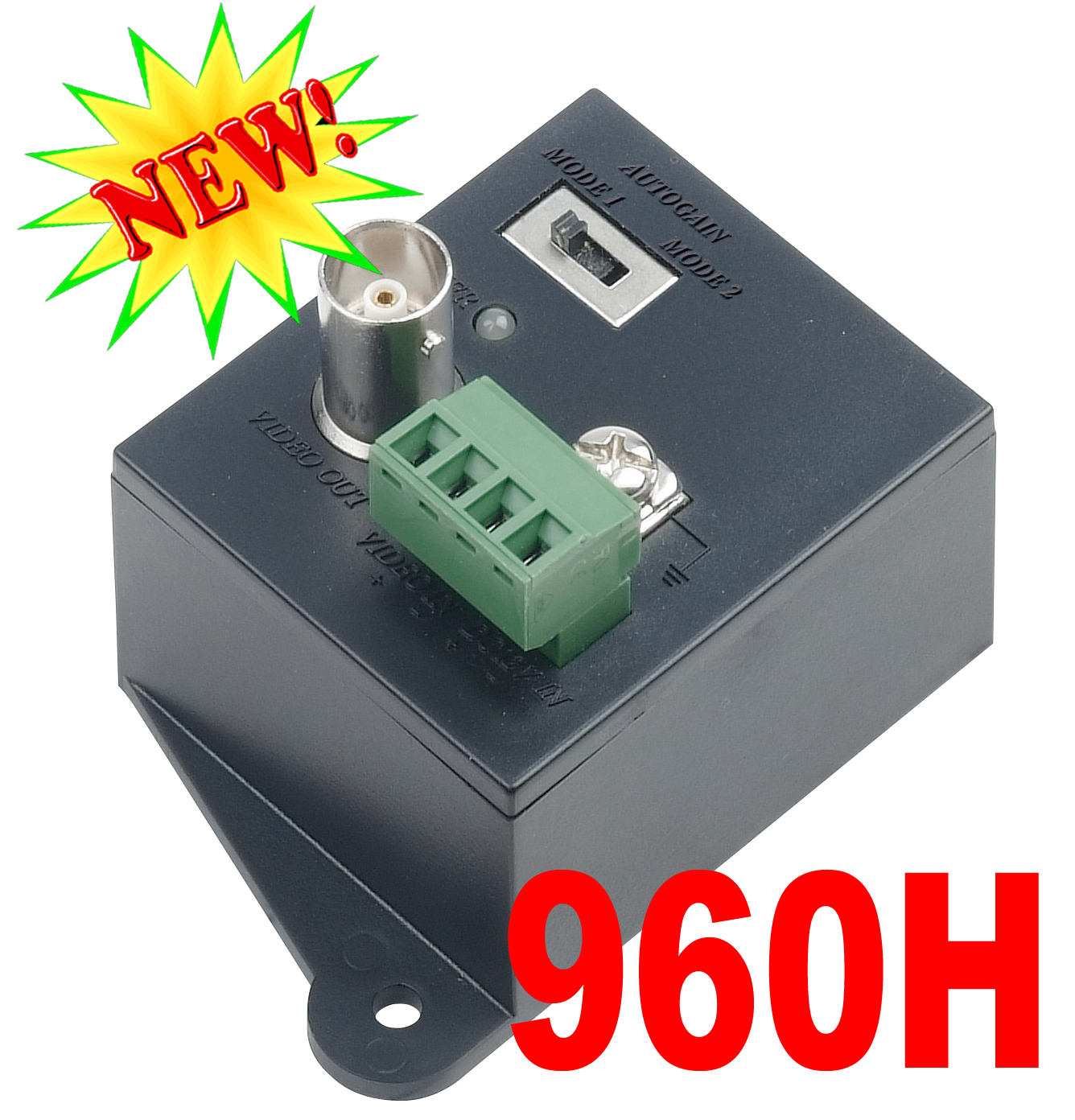

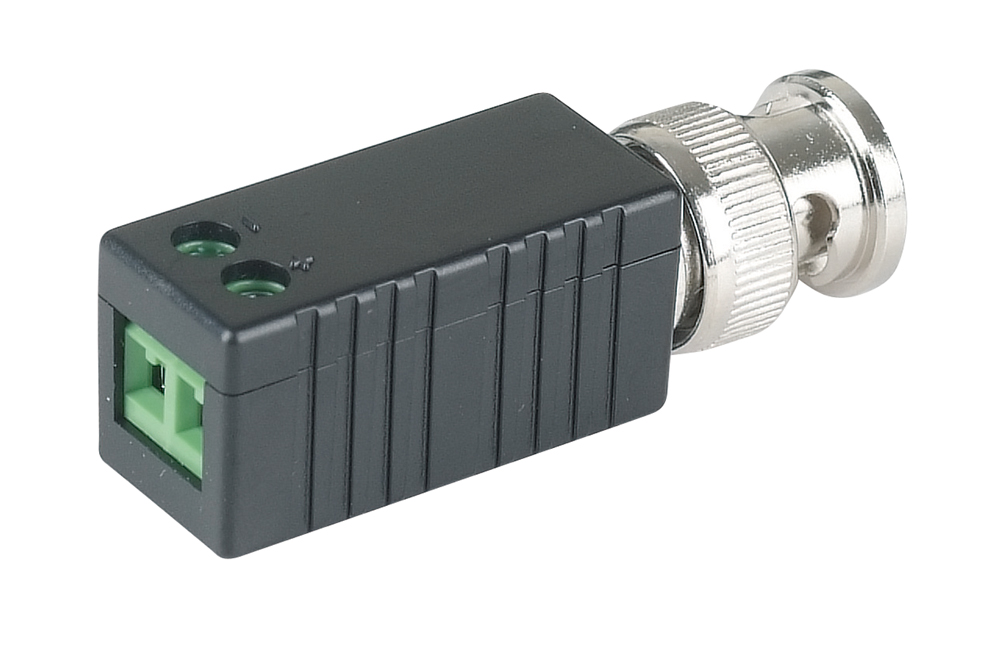

 Panel View:




TTP111VE                                                                           TTA111VHA-960H



Specification:

IT Em ITEM NO.

TTP111VE

Video Input (BNC Connector)

1

Video Input

1V p-p, 75 Ohms

Cable

Twisted Pair CAT 5

RJ-45 Output

Terminal

Power

X

Temperature

Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

Dimension      mm

14.5 × 49.5 × 15.5

Weight            g

18



ITEM NO.

TTA111VHA-960h

Video Standard

NTSC / PAL

Video Input

Terminal Block / 100Ω / 1.4 Vp-p Max

Video Output

BNC / 75Ω / 1 Vp-p

Link Cable

CAT.5 (24 AWG)

Power Consumption

100mA

Power Supply

DC 12V 500mA

Temperature

Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

Dimension   mm

43.2 × 74 × 45.2

Weight        g

50

Rev. A
